ideCAD Architecture and Static v6.2 New Features

A

admin

Administrator
Staff member

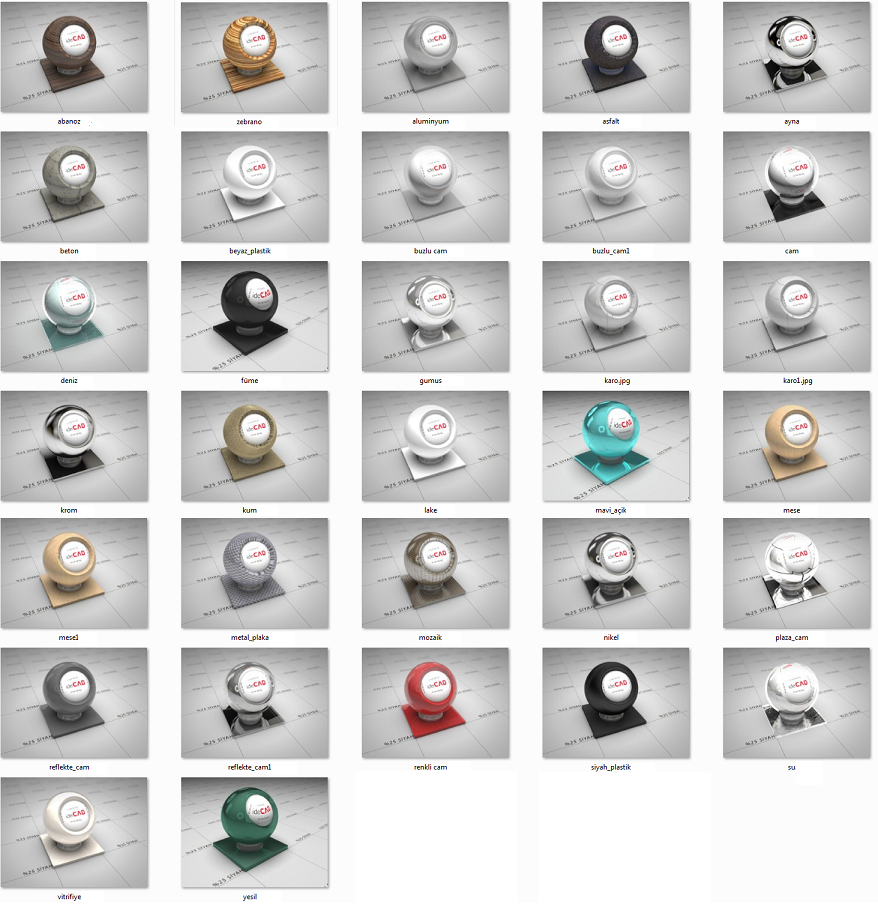

New features that will be available to v6 users for free with the next update: New ideCAD Render and render engine Technical features -Global Illumination (Photon Mapping/Irradiance Cache) -Parametric daylight and sky illumination (to be able to illuminate according to the physical condition of the sun by selecting the country/city/date/time) -IES lights (photometric lights) -Imperfect refraction/reflections -Lightenable objects -Unlimited multiprocessor support -Ambient occlusion -Realistic fresnel reflection -Can use hemispherical environment map or "physical sky" for sky background -Camera effects (vignetting, DOF lens blur, gamma, exposure control) -New "material edit" command for selected objects in ideCAD Render

Re: ideCAD Architecture and Static v6.2 Features Parametric curtain wall object for architecture

Progressive construction calculation Optionally with the CEB-FIB 90 method: -Change of the elasticity modulus of the concrete with time -Creep effects of the lower floors as a result of the loading of the upper floors -Shrinkage of the concrete over time being able to take into account the shrinkage effects that characterize the building -Questioning the state of the building after the desired time (like 2 years) after the coating and live loads (Q) are loaded -Defining the varying construction times on a floor basis

Thermal loading calculation -Defining two different heat loading situations as T1 and T2 -Calculation with varying heat differences on the basis of floor and element if desired
*Thermal deformation shape in an example system

New analysis possibilities: -To make vertical load solution optionally without rigid diaphragm. -Defining stiffness reduction (cracked section) on the basis of loading the elements. New possibilities to facilitate work: -The ability to select an element on all floors. -Defining favorites in object settings and calling them with a single command. -When placing library elements, automatically taking the upper level of the element below (site, land, other libraries, etc.). Box, rotated and extended objects for mass modeling in architecture. -Scanning the library elements on the plan.
